Warehouse Mezzanines, Storage Platforms Mezzanine Shelving Solutions

Industrial mezzanine floors can more than double available storage space.

MEZZANINE SHELVING SYSTEMS

Mezzanine is a system that provides a solution for storage and work at the same time. When you use these systems on multiple floors, additional storage space is obtained or works on the same site. Thanks to the mezzanine, the maximum efficiency of the rack height is achieved. By means of the mezzanine, maximum efficiency can be achieved in rack height. These systems, manufactured from cold or hot rolled profiles, are installed without problems. Depending on the specific requirements for different loads, the brackets can be extended horizontally or longitudinally. Subject to the highest levels of security on each floor. Materials such as wire, mesh, board, MDF, sheet metal, pan and similar materials are used to cover flooring. Six of the chips are white or naturally closed.

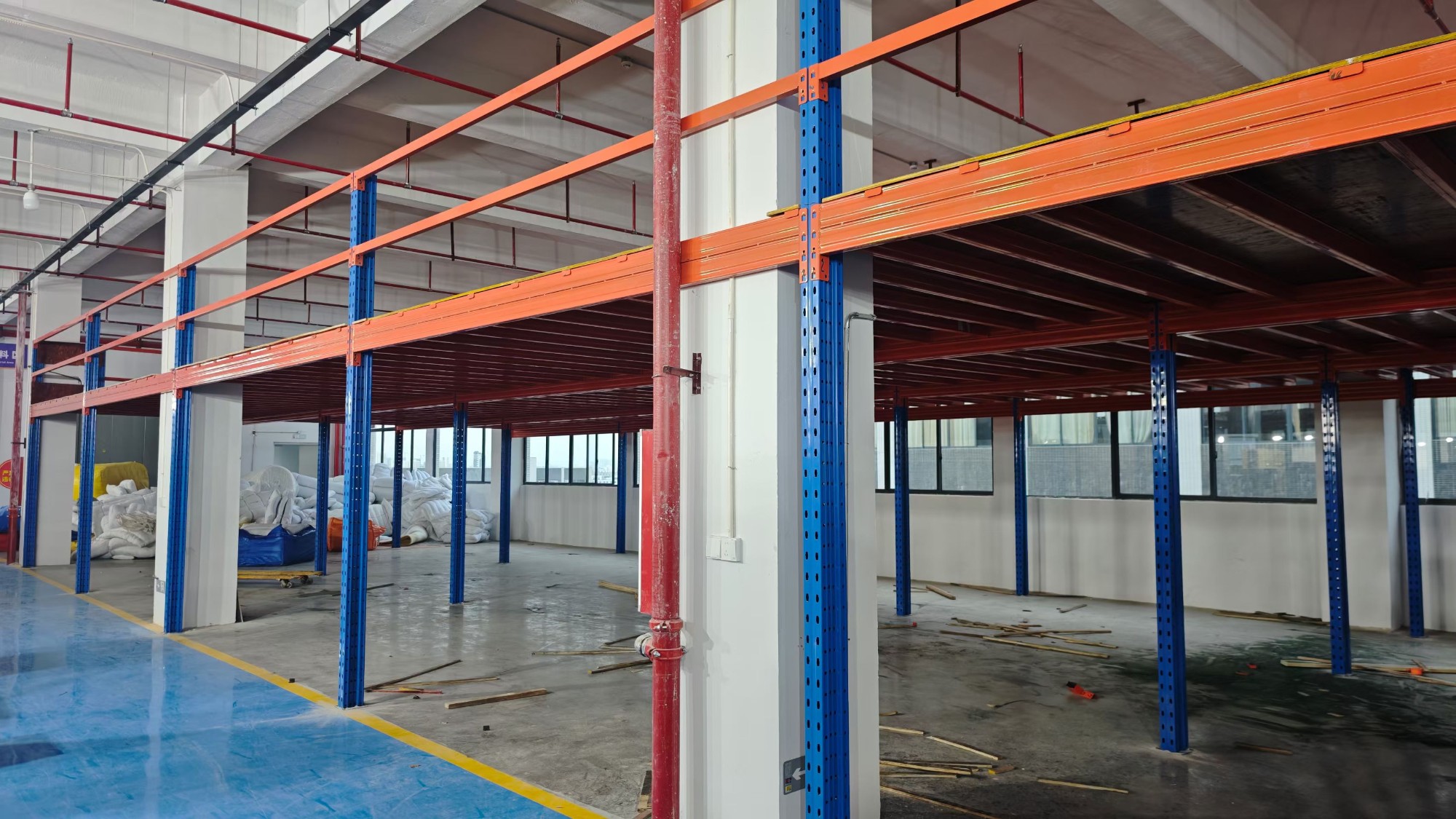

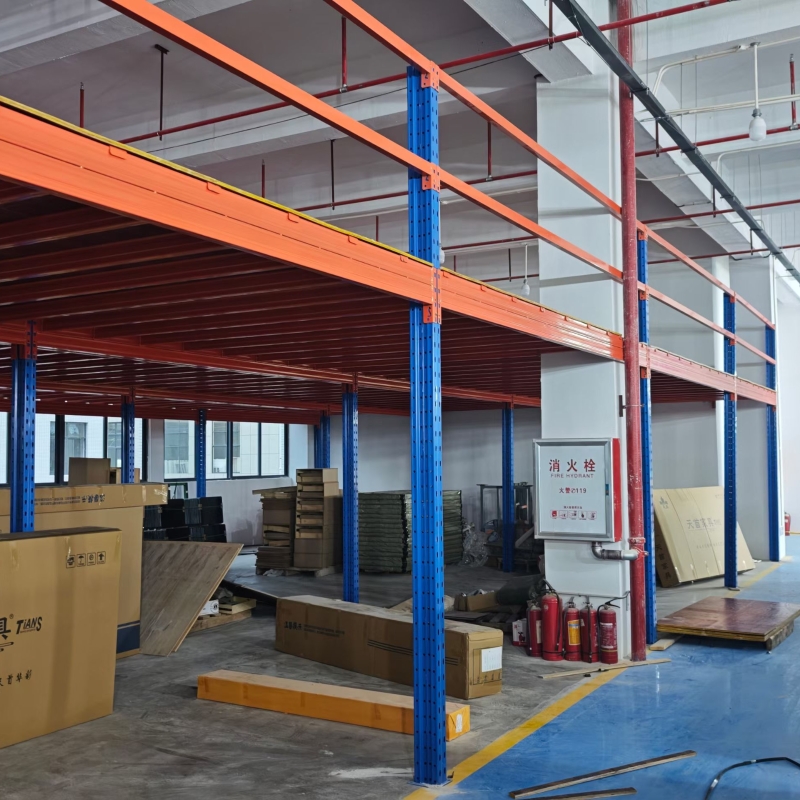

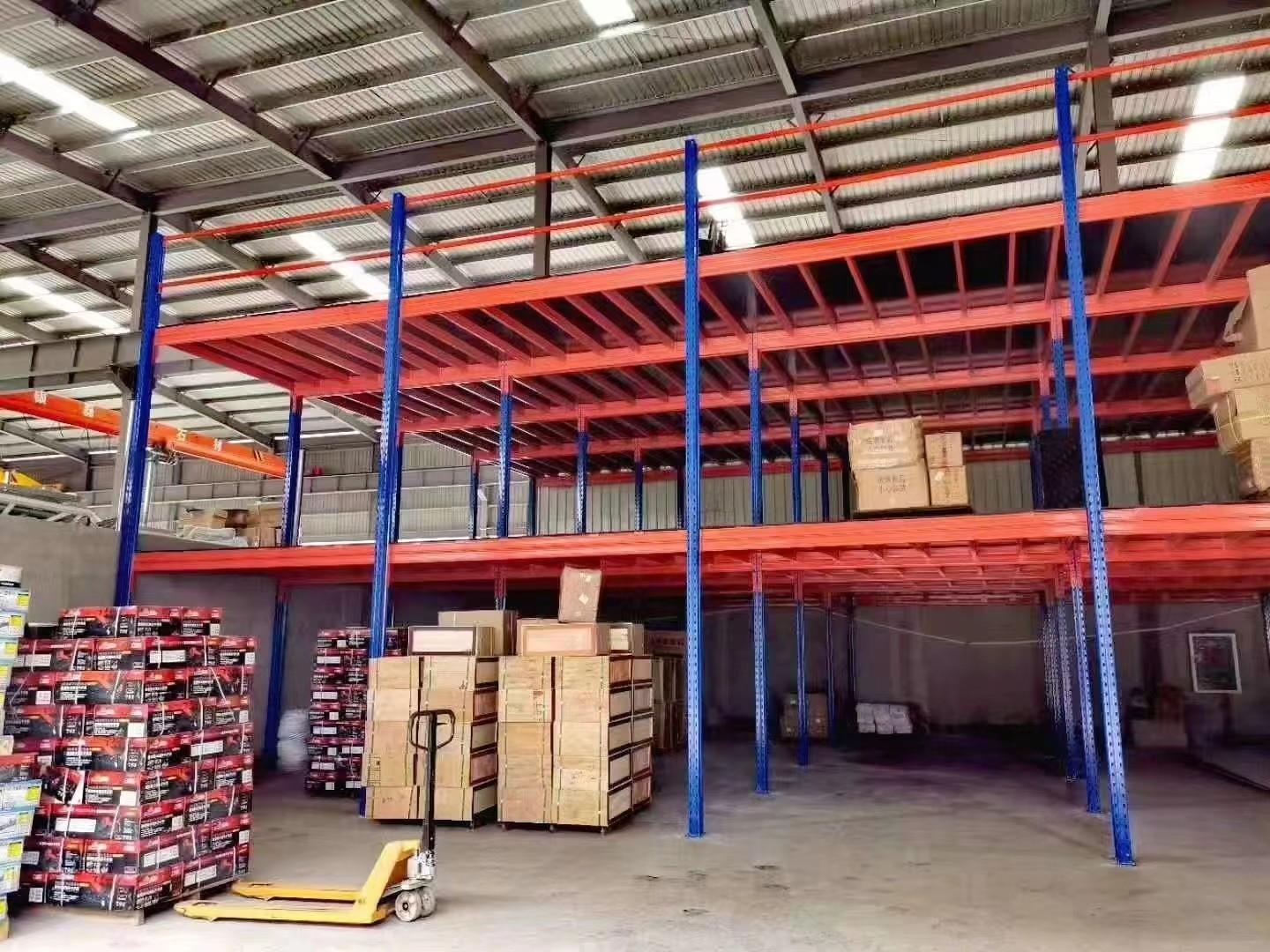

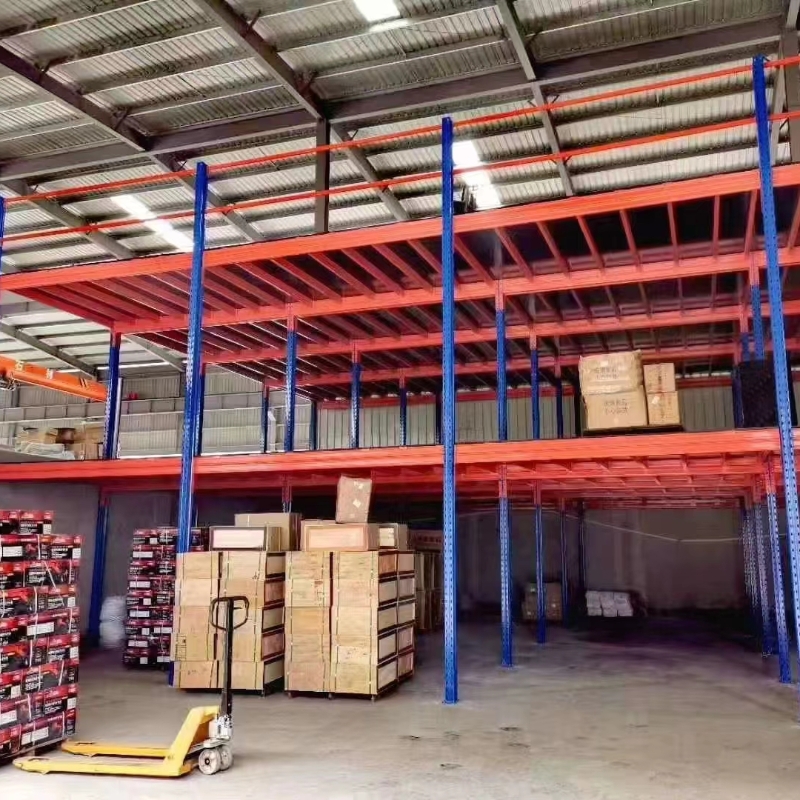

Our fully assembled mezzanine racking system is specifically designed for warehouses with a high clear ceiling height—typically 4.5 meters or more—enabling the creation of 2 to 3 independent levels for storage and operational activities. The lower level accommodates forklift traffic, while the upper levels are utilized for manual access and retrieval; equipped with standard staircases and safety guardrails, the system allows you to effectively double your storage footprint without the need for structural building expansion. It is ideally suited for the warehousing of diverse product categories and small-batch inventory—common in sectors such as e-commerce, electronics, apparel, and light manufacturing. Featuring a modular design, the system ensures rapid installation, allows for easy disassembly and relocation, and offers a cost-effective solution.

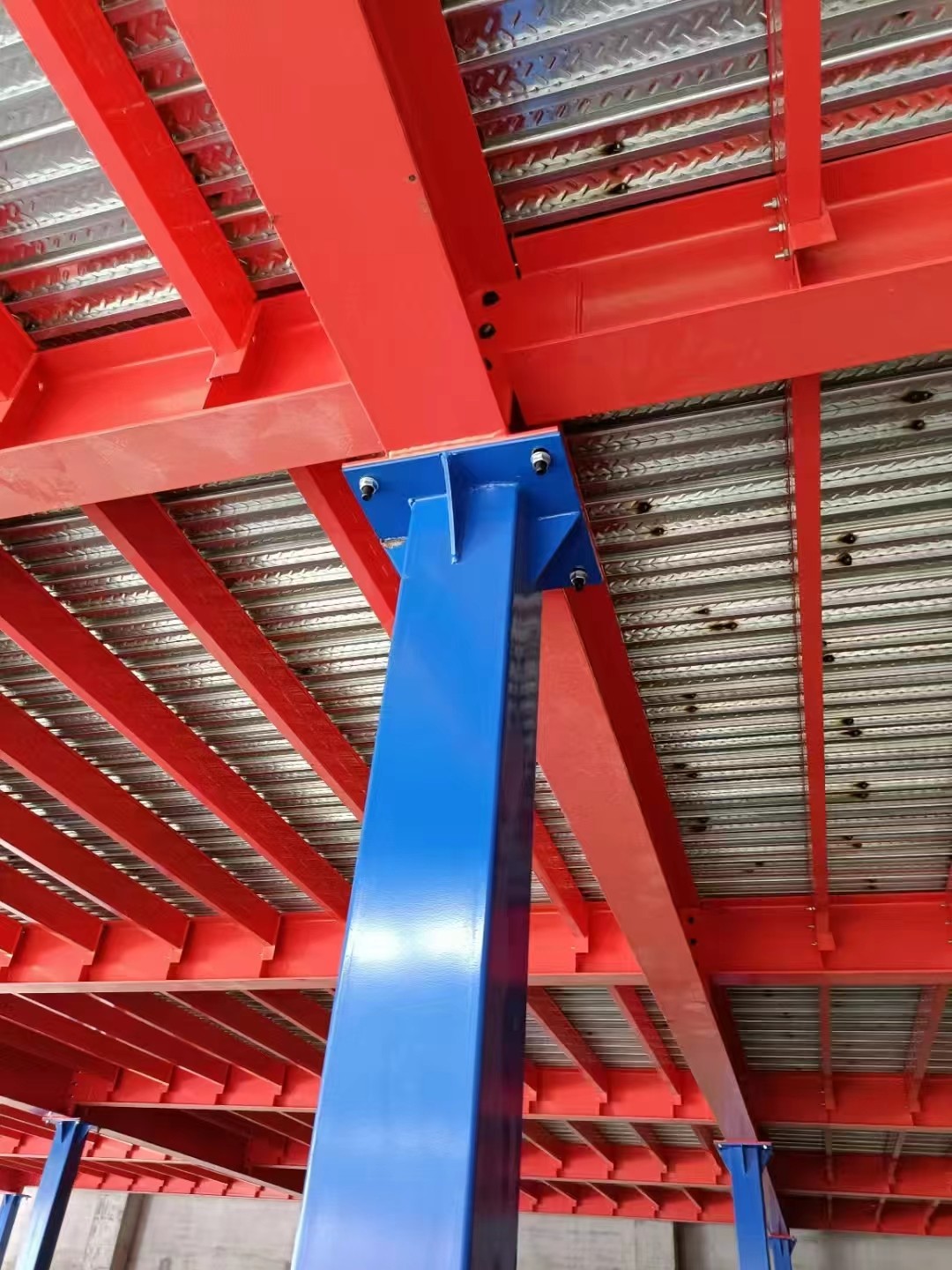

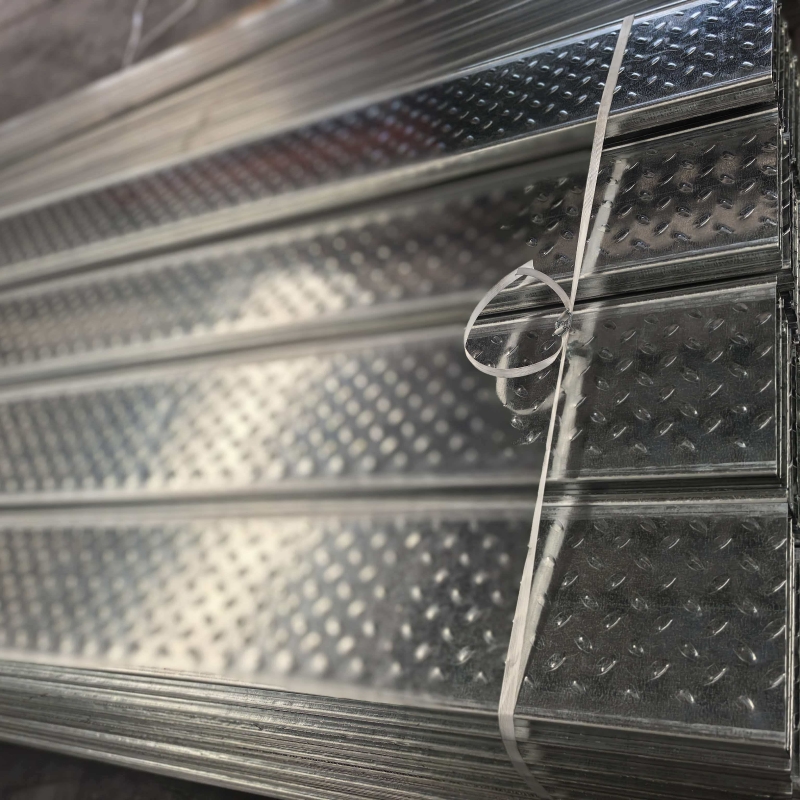

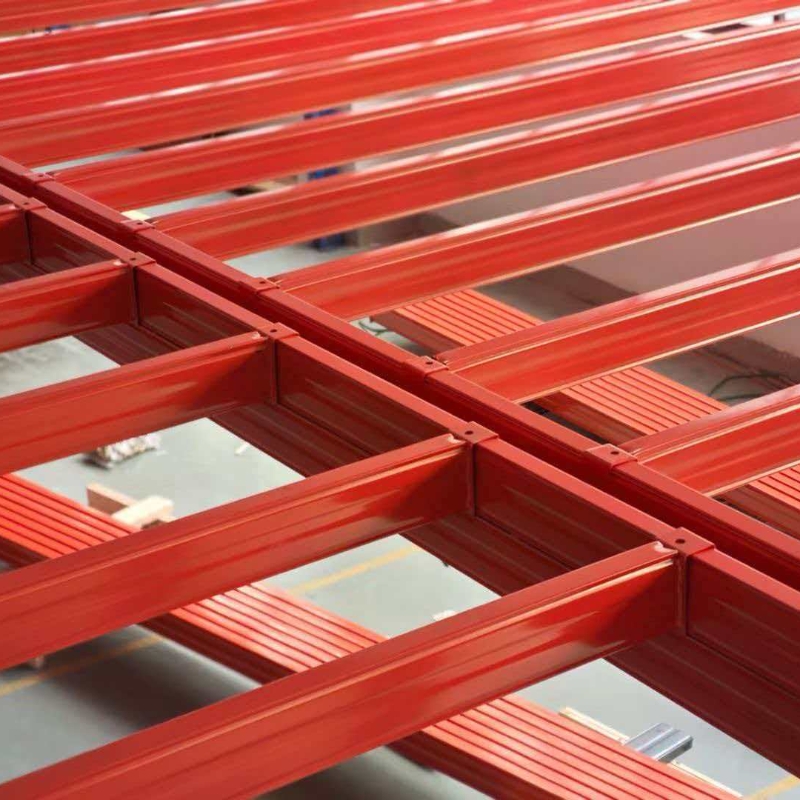

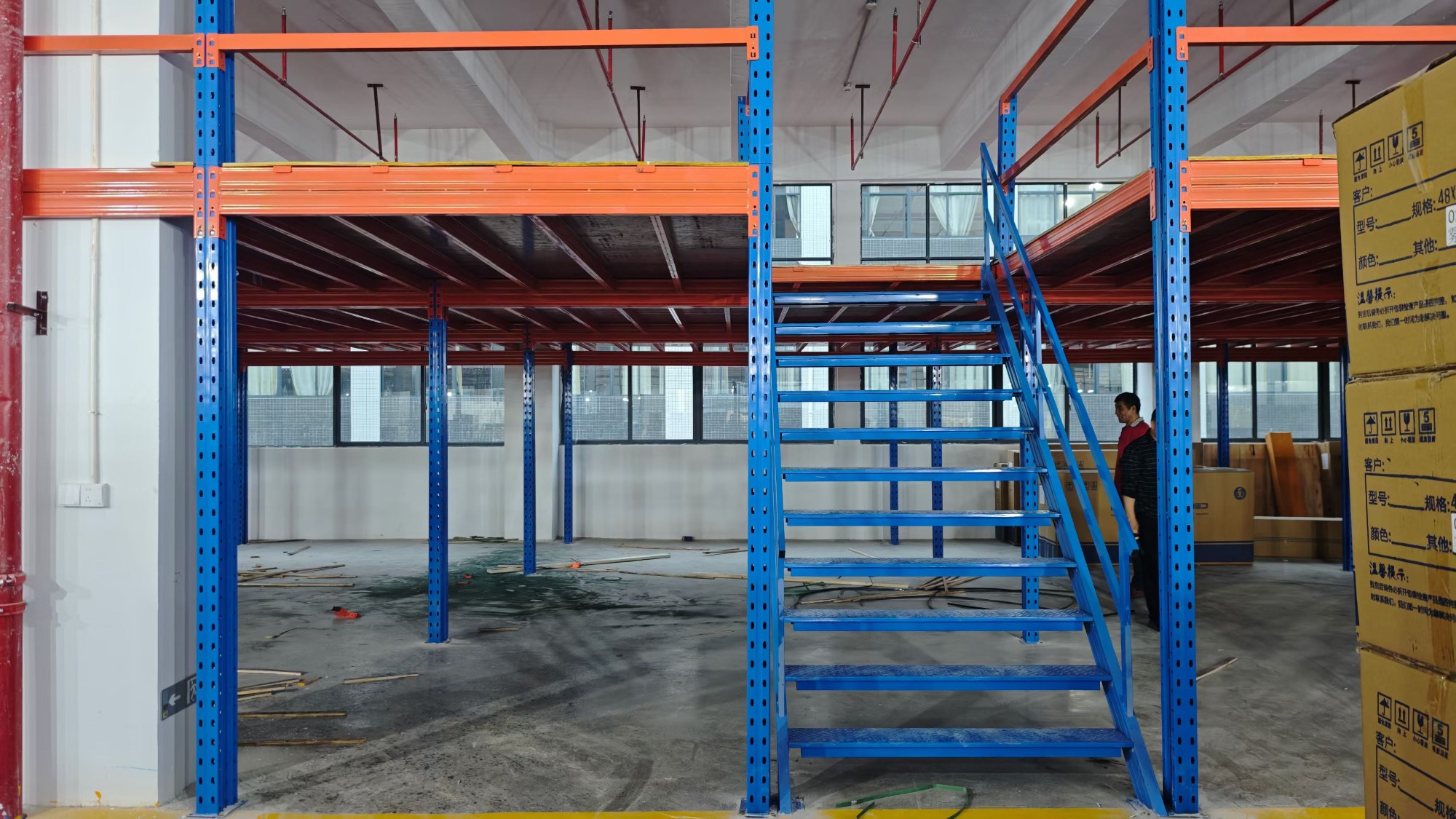

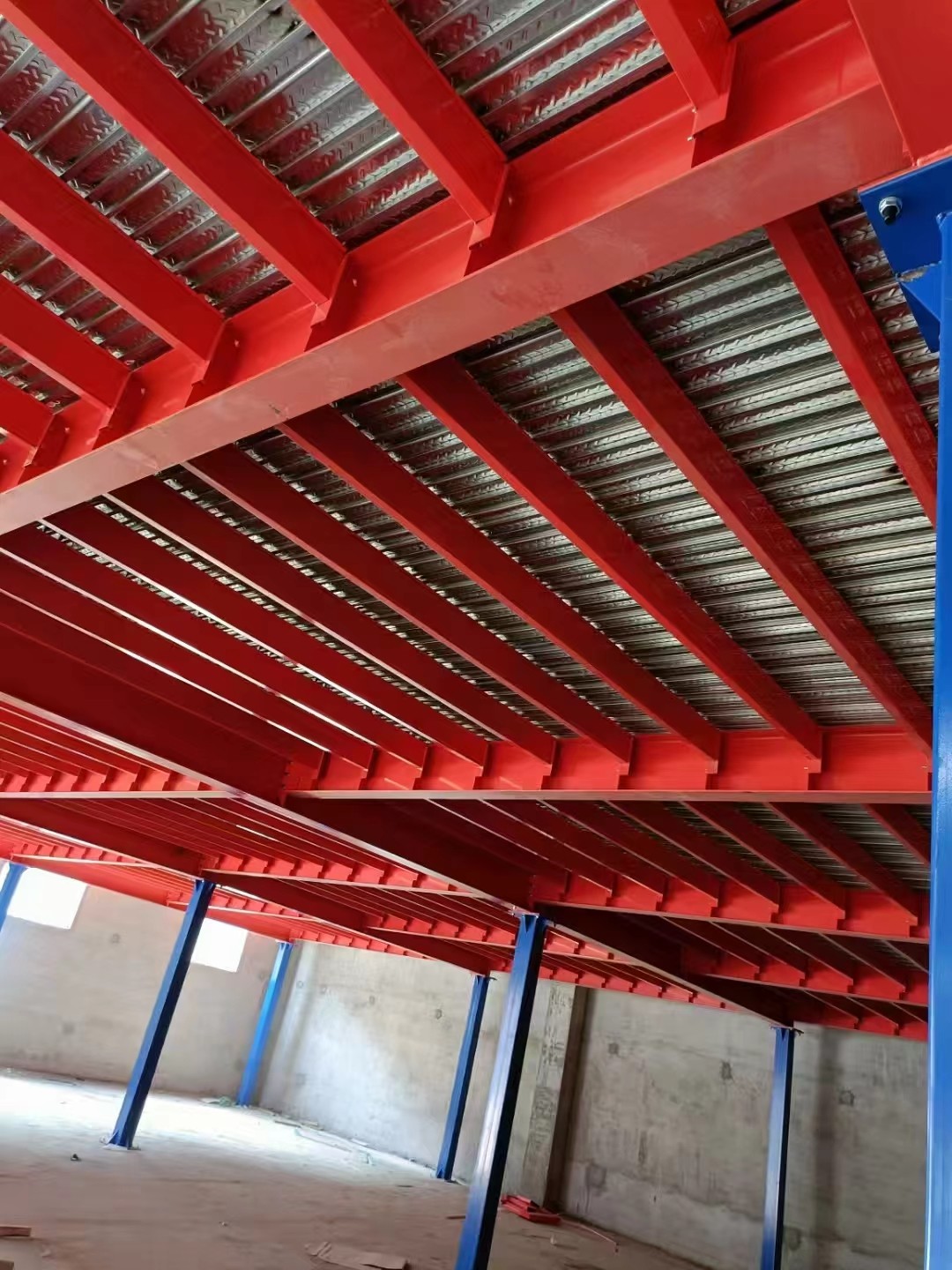

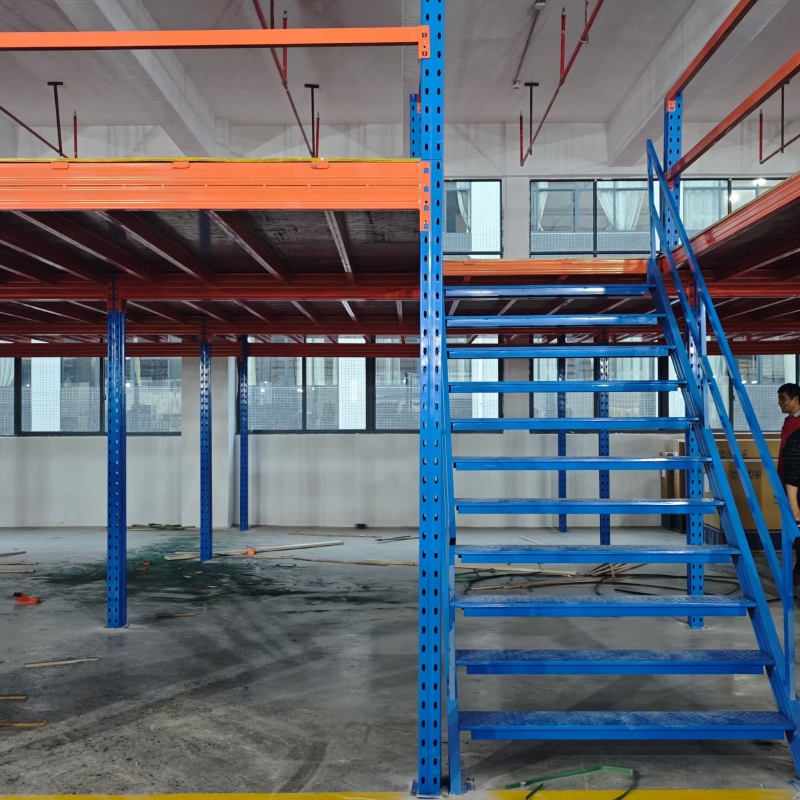

Constructed as a fully assembled unit, the mezzanine racking system utilizes high-quality cold-rolled steel uprights, primary and secondary beams, and flooring options ranging from checkered plates to steel gratings. Assembly is achieved via bolted connections, eliminating the need for welding. The surface undergoes either electrostatic powder coating or hot-dip galvanization treatment to ensure resistance against moisture and rust. Standard features include 1.2-meter safety guardrails, anti-slip flooring, and evacuation staircases, with optional additions such as lifting platforms or freight elevators available upon request.

Standard load-bearing capacity ranges from 300 to 800 kg per square meter (with heavy-duty options available for customization). Floor heights and spatial layouts can be tailored to specific requirements; the construction cycle is short, allowing the system to be put into immediate operation upon completion, and it can be dismantled and relocated for reuse in a different location.

Applicable Scenarios: Warehouses, manufacturing plants, and logistics centers with a clear ceiling height of ≥5 meters. It is particularly well-suited for storing diverse product lines in small batches with low-frequency access requirements. The lower level typically serves as a rapid picking zone or equipment area, while the upper levels function as dedicated storage or office spaces.

Core Value: Increases vertical space utilization by 60% to 100%. The cost is significantly lower than that of constructing a new facility or leasing additional warehouse space. Furthermore, the system ensures safety and regulatory compliance, requires minimal maintenance, and offers a long service life.
